Arc angle milling cutter

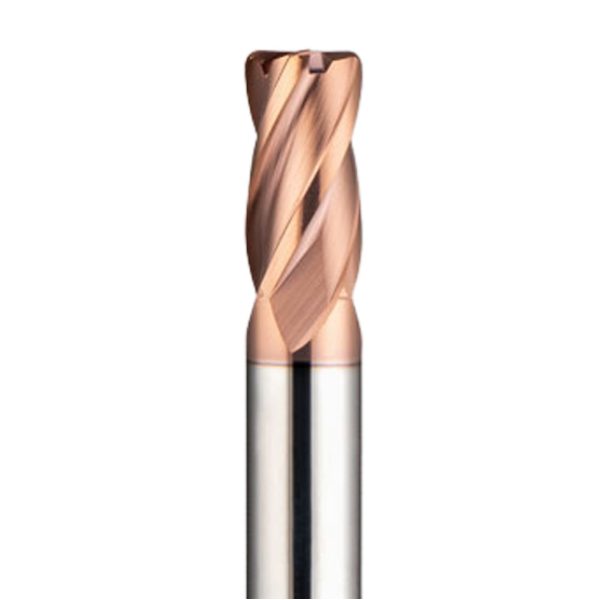

300 4-flute corner rounding end mill
  • 300 4-flute corner rounding end mill
300 4-flute corner rounding end mill

Excellent performance and cost-effective. Comparable to the quality of Europe, America and Japan.

Selection of 0.3μm imported ultra-micro carbide materials, high-speed processing of high hardness material life longer.

Higher surface finish when processing optical moulds, better wear resistance when processing high hardness materials.

Special tool design, high precision tolerance and quality control.

Oil mist, emulsion or air cooling is recommended.

Semi-finishing and finishing.


Table for use of processed materials  √well suited   〇general

Carbon steel Alloy steel

Prehardenedsteel、Hardened steel

Stainless steel

Cast iron

Coppe

Aluminium

 Graphite

Titanium alloy

Heat resistant alloy

Plastics

40HRC

50HRC

55HRC

65HRC

〇

√

 √

√

〇

 〇

〇

〇

〇

〇


R＜0.5  ±0.003    R≥0.5  ±0.005
Blade diameter          D R Angle radius        R Blade length
H 		Stem diameter
d 		Total length
L 		Illustration
1.0 0.1 2 4D 50L A
1.0 0.2 2 4D 50L A
1.5 0.1 3 4D 50L A
1.5 0.2 3 4D 50L A
1.5 0.3 3 4D 50L A
2.0 0.1 4 4D 50L A
2.0 0.2 4 4D 50L A
2.0 0.3 4 4D 50L A
2.5 0.2 5 4D 50L A
2.5 0.5 5 4D 50L A
3.0 0.1 6 3D 50L B
3.0 0.2 6 3D 50L B
3.0 0.3 6 3D 50L B
3.0 0.5 6 3D 50L B
3.0 0.1 6 4D 50L A
3.0 0.2 6 4D 50L A
3.0 0.3 6 4D 50L A
3.0 0.5 6 4D 50L A
4.0 0.2 8 4D 50L B
4.0 0.3 8 4D 50L B
4.0 0.5 8 4D 50L B
5.0 0.3 10 6D 50L A
5.0 0.5 10 6D 50L A
6.0 0.2 12 6D 50L B
6.0 0.3 12 6D 50L B
6.0 0.5 12 6D 50L B
6.0 1.0  12 6D 50L B
6.0 0.2 12 6D 75L B
6.0 0.5 12 6D 75L B
6.0 1.0  12 6D 75L B
6.0 0.2 12 6D 100L B
6.0 0.5 12 6D 100L B
6.0 1.0  12 6D 100L B
8.0 0.2 16 8D 60L B
8.0 0.5 16 8D 60L B
8.0 1.0  16 8D 60L B
8.0 0.2 16 8D 75L B
8.0 0.5 16 8D 75L B
8.0 1.0  16 8D 75L B
8.0 0.2 16 8D 100L B
8.0 0.5 16 8D 100L B
8.0 1.0  16 8D 100L B
10.0 0.5 20 10D 75L B
10.0 1.0  20 10D 75L B
10.0 0.5 20 10D 100L B
10.0 1.0  20 10D 100L B
10.0 0.5 20 10D 150L B
10.0 1.0  20 10D 150L B
12.0 0.5 24 12D 75L B
12.0 1.0  24 12D 75L B
12.0 0.5 24 12D 100L B
12.0 1.0  24 12D 100L B
12.0 0.5 24 12D 150L B
12.0 1.0  24 12D 150L B
16.0 0.5 32 16D 100L B
16.0 1.0  32 16D 100L B
16.0 0.5 32 16D 150L B
16.0 1.0  32 16D 150L B
