1、6slots design inside the holder to avoid slipping,enhancing clamping force.
2、Frictional gripping forceincreased by the clamping design,when the cutting tools slip to the cone face.
3、Reinforced thickness of the chuck holder improve the rigidity and anti-vibrations.
4、High clamping force and run-out accuracy

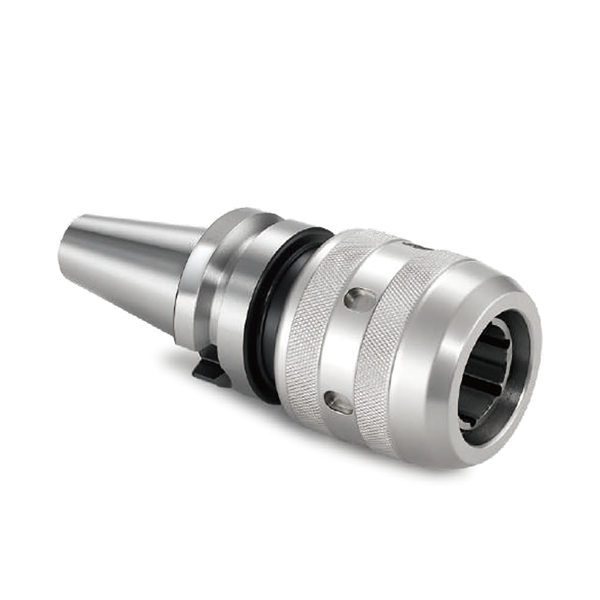

Name: BT-C POWER CHUCK TOOL HOLDER
Specifications: BT30/BT40/BT50
Material: 20CrMnTi
Hardness: HBR 56-60
Body Precision: 0.002mm
Product Tolerance: Grade > AT3
Applicable Wrench: C32
Overall Runout: 0.005mm
|

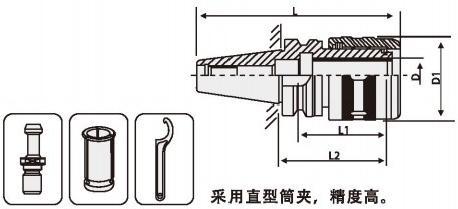

Specification |
D |
L2 |
L1 |
L |
D1 |
Spanner |
Collet |
Weight(KG) |
|
|
BT30 |
-C20-80 |
20 |
80 |
70 |
128.4 |
53 |
C20-BS |
C20 |
1.80 |
|
-C25-80 |
25 |
80 |
73 |
128.4 |
60 |
C25-BS |
C25 |
1.95 |
|
|
BT40 |
-C20-105 |
20 |
105 |
70 |
170.4 |
53 |
C20-BS |
C20 |
2.60 |
|
-C25-105 |
25 |
105 |
73 |
170.4 |
60 |
C25-BS |
C25 |
2.65 |
|
|
-C32-105 |
32 |
105 |
76 |
170.4 |
70 |
C32-BS |
C32 |
2.80 |
|
|
-C32-135 |
32 |
135 |
76 |
200.4 |
70 |
C32-BS |
C32 |
3.00 |
|
|
-C32-165 |
32 |
165 |
76 |
230.4 |
70 |
C32-BS |
C32 |
3.50 |
|
|
BT50 |
-C20-105 |
20 |
105 |
70 |
206.8 |
53 |
C20-BS |
C20 |
4.50 |
|
-C25-105 |
25 |
105 |
73 |
206.8 |
60 |
C25-BS |
C25 |
4.60 |
|
|
-C32-105 -C32-135 -C32-165 |
32 |
105 135 165 |
95 |
206.8 236.8 266.8 |
70 |
C32-BS |
C32 |
5.15 6.60 |
|
|
-C42-115 |
42 |
115 |
98 |
216.8 |
92 |
C42-BS |
C42 |
6.10 |
|
|
-C42-135 |
42 |
135 |
98 |
236.8 |
92 |
C42-BS |
C42 |
6.60 |
|
|
-C42-165 |
42 |
165 |
98 |
266.8 |
92 |
C42-BS |
C42 |
7.40 |
