Produced using laser marking in a single-step process, beautifully combining artistry with product quality
Precision grinding of the inner bore
Utilises advanced high-precision internal and external grinding machines to improve the fit between the inner bore and the tool
Superb craftsmanship and high concentricity
Excellent machining results and improved efficiency, with a body accuracy of 0.005 mm
Quenched and hardened
Heated during the quenching process to make the tool harder, more shock-resistant and durable
|

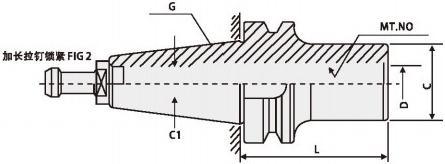

Specification |
Manner |
D |
L |
C |
C1 |
G |
Weight(KG) |
|
|
BT30 |
MTB1-45 |
1 |
12.065 |
45 |
25 |
10 |
M6×1 |
0.55 |
|
MTR2-45 |
1 |
12.065 |
45 |
32 |
10 |
M10×1 |
0.55 |
|
|
MTB1-45 |
1 |
12.065 |
45 |
25 |
10 |
M6×1 |
1.05 |
|
|
MTB2-45 |
1 |
17.780 |
45 |
32 |
13.5 |
M10×1.5 |
1.85 |
|
|
|
MTB3-75 |
1 |
23.825 |
75 |
42 |
18 |
M12×1.75 |
1.3 |
|
|
MTB4-90 |
2 |
31.267 |
90 |
50 |
20.5 |
M16×2 |
1.4 |
|
BT50 |
MTB1-45 |
1 |
12.065 |
45 |
25 |
10 |
M6×1 |
3.8 |
|
MTB2-45 |
1 |
17.780 |
45 |
32 |
16 |
M10×1.5 |
3.9 |
|
|
|
MTB3-60 |
1 |
23.825 |
60 |
42 |
18 |
M12×1.75 |
4.0 |
|
|
MTB4-75 |
1 |
31.267 |
75 |
50 |
20.5 |
M16×2 |
4.2 |
|
|
MTB5-120 |
2 |
44.399 |
120 |
70 |
22.5 |
M20×2 |
4.3 |
|
Specication |
Supporting Shank |
G |
|
|
BT30-45°-MTB2 |
BT30-MTB2 |
M10×1.5 |
|
|
|
BT40-45°-MTB2 |
BT40-MTB2 |
M10×1.5 |
|
BT40-45°-MTB3 |
BT40-MTB3 |
M12×1.75 |
|
|
|
BT40-45°-MTB4 |
BT40-MTB4 |
M16×2 |
|
|
BT50-45°-MTB2 |
BT50-MTB2 |
M10×1.5 |
|
|
BT50-45°-MTB3 |
BT50-MTB3 |
M12×1.75 |
|
|
BT50-45°-MTB4 |
BT50-MTB4 |
M16×2 |
