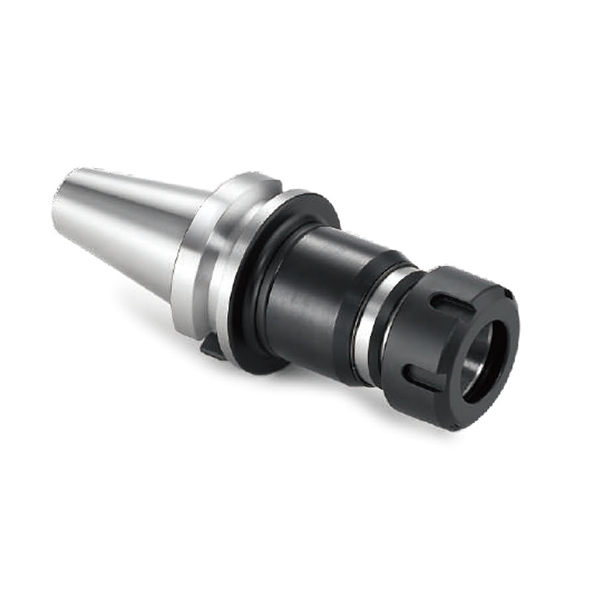

1、The rigidity design ensures precision synchronization between spindle rotation and cutting feed.
2、ER collet can be used for gripping dill bits,reaming cuttersand milling cutters.
3、Do not lock the damping nut too tight in order to avoid damage.
|
Specification |
Tapping range |
D |
L |
L1 |
L2 |
T |
Collet |
|
|
BT30 |
TER16 |
M2-M12 |
46 |
149 |
100.6 |
20 |
M12 |
ER16 |
|
TER20 |
M2-M16 |
46 |
151 |
102.6 |
20 |
M12 |
ER20 |
|
|
TER25 |
M2-M22 |
46 |
153 |
104.6 |
20 |
M12 |
ER25 |
|
|
TER32 |
M2-M30 |
46 |
156 |
107.6 |
20 |
M12 |
ER32 |
|
|
BT40 |
TER16 |
M2-M12 |
63 |
161 |
95.6 |
25 |
M16 |
ER16 |
|
TER20 |
M2-M16 |
63 |
163 |
97.6 |
25 |
M16 |
ER20 |
|
|
TER25 |
M2-M22 |
63 |
165 |
99.6 |
25 |
M16 |
ER25 |
|
|
TER32 |
M2-M30 |
63 |
168 |
102.6 |
25 |
M16 |
ER32 |
|
|
BT50 |
TER16 |
M2-M12 |
100 |
207 |
105.2 |
35 |
M24 |
ER16 |
|
TER20 |
M2-M16 |
100 |
209 |
107.2 |
35 |
M24 |
ER20 |
|
|
TER25 |
M2-M22 |
100 |
211 |
109.2 |
35 |
M24 |
ER25 |
|
|
TER32 |
M2-M30 |
100 |
214 |
112.2 |
35 |
M24 |
ER32 |
