4 Flute Carbide Flat End Mill

Products

Flat bottom milling cutter

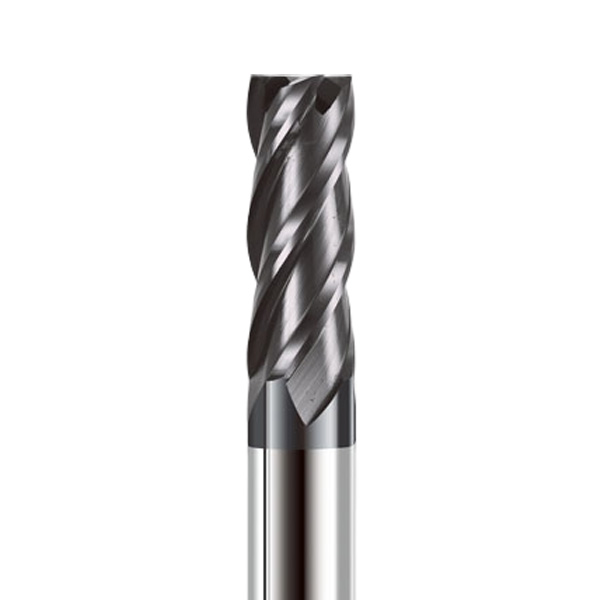

4 Flute Flat End Mill

Excellent performance and high cost-effectiveness. Taiwan quality.
Select 0.6 μ M fine grain hard alloy material, meeting various universal processing requirements.
Suitable for processing ordinary steel and pre hardened steel.
Sharp cutting edges with reasonable tool strength make milling light and fast, with a long service life.
Special tool design, high-precision tolerance and quality control.
It is recommended to use coolant and oily cutting fluid.
Rough machining and precision machining.

Applicable Table for Millable Materials √fit as a pudding for a friar's mouth 〇 appropriate

carbon steel
alloy steel

Pre hardened steel, hardened steel

Stainless steel

cast iron

copper alloy

aluminium alloy

graphite

titanium alloy

Heat-resistant alloy

plastic

40HRC

50HRC

55HRC

65HRC

√

〇

√

〇

D ≤ 12 0~-0.02 12<D 0~-0.03

Blade diameter D	Blade length H	Stem diameter D	Total length L	Illustration
one	three	4D	50L	A
one point five	four	4D	50L	A
two	five	4D	50L	A
two point five	eight	4D	50L	A
three	eight	3D	50L	B
three	eight	4D	50L	A
three point five	ten	4D	50L	A
four	ten	forty	50L	B
four point five	ten	5D	50L	A
five	thirteen	5D	50L	B
five	thirteen	6D	50L	A
five point five	thirteen	6D	50L	A
six	fifteen	6D	50L	B
seven	sixteen	8D	60L	A
eight	twenty	8D	60L	B
nine	twenty	10D	75L	A
ten	twenty-five	10D	75L	B
eleven	twenty-five	12D	75L	A
twelve	thirty	12D	75L	B
fourteen	thirty-five	14D	80L	B
sixteen	forty-five	16D	100L	B
twenty	forty-six	20D	100L	B

D ≤ 12 0~-0.02 12<D 0~-0.03

Blade diameter D	Blade length H	Stem diameter D	Total length L	Illustration
one	three	4D	50L	A
one point five	four	4D	50L	A
two	five	4D	50L	A
two point five	eight	4D	50L	A
three	eight	3D	50L	B
three	eight	4D	50L	A
three point five	ten	4D	50L	A
four	ten	forty	50L	B
four point five	ten	5D	50L	A
five	thirteen	5D	50L	B
five	thirteen	6D	50L	A
five point five	thirteen	6D	50L	A
six	fifteen	6D	50L	B
seven	sixteen	8D	60L	A
eight	twenty	8D	60L	B
nine	twenty	10D	75L	A
ten	twenty-five	10D	75L	B
eleven	twenty-five	12D	75L	A
twelve	thirty	12D	75L	B
fourteen	thirty-five	14D	80L	B
sixteen	forty-five	16D	100L	B
twenty	forty-six	20D	100L	B
