2、ER collet can be used for gripping dnill bits,reaming cutters and milling cutters.
3、Do not lock the clamping nut too tight in order to avoid damage.
|

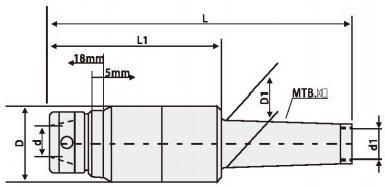

Specification |
Tapping range |
D |
d1 |
D1 |
L |
L1 |
Collet |
|
|
MTB3 |
TER16 |
M2-M12 |
46 |
M12 |
23.825 |
176 |
89 |
ER16 |
|
TER20 |
M2-M24 |
46 |
M12 |
23.825 |
206 |
120 |
ER20 |
|
|
TER25 |
M2-M22 |
46 |
M12 |
23.825 |
176 |
89 |
ER25 |
|
|
TER32 |
M2-M30 |
46 |
M12 |
23.825 |
206 |
120 |
ER32 |
|
| MTB4 |
TER16 |
M2-M12 |
46 |
M16 |
31.267 |
199 |
89 |
ER16 |
|
TER20 |
M2-M24 |
46 |
M16 |
31.267 |
229 |
120 |
ER20 |
|
|
TER25 |
M2-M22 |
46 |
M16 |
31.267 |
199 |
89 |
ER25 |
|
|
TER32 |
M2-M30 |
46 |
M16 |
31.267 |
229 |
120 |
ER32 |
